13.1.1 Peers

We have just described a nice system in which components govern their own appearance, and events are delivered to objects that are "listening" to those components. Unfortunately, getting data out to a display medium and receiving events from input devices involve crossing the line from Java to the real world. The real world is a nasty place full of architecture dependence, local peculiarities, and strange physical devices like mice, trackballs, and '69 Buicks.

At some level, our components will have to talk to objects that contain native methods to interact with the host operating environment. To keep this interaction as clean and well-defined as possible, Java uses a set of peer interfaces. The peer interface makes it possible for a pure Java-language AWT component to use a corresponding real component--the peer object--in the native environment. You won't generally deal directly with peer interfaces or the objects behind them; peer handling is encapsulated within the Component class. It's important to understand the architecture, though, because it imposes some limitations on what you can do with components.

For example, when a component such as a Button is first created and displayed on the screen, code in the Component class asks an AWT Toolkit class to create a corresponding peer object, as shown in Figure 13.2. The Toolkit is a factory that knows how to create objects in the native display system; Java uses this factory design pattern to provide an abstraction that separates the implementation of component objects from their functionality. The Toolkit object contains methods for making instances of each type of component peer. (As a developer, you will probably never work with a native user interface directly.) Toolkits can be swapped and replaced to provide new implementations of the components without affecting the rest of Java.

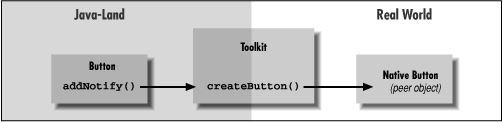

Figure 13.2: A toolkit creating a peer object

Figure 13.2 shows a Toolkit producing a peer object for a Button. When you add a button to a container, the container calls the Button's addNotify() method. In turn, addNotify() calls the Toolkit's createButton() method to make the Button's peer object in the real display system. Thereafter, the Component class keeps a reference to the peer object and delegates calls to its methods.

The java.awt.peer package, shown in Figure 13.3, parallels the java.awt package and contains an interface for each type of component. For example, the Button component has a ButtonPeer interface, which defines the capabilities of a button.

Figure 13.3: The java.awt.peer package

The peer objects themselves can be built in whatever way is necessary, using a combination of Java and native code. (We will discuss the implementation of peers a bit more in the AWT performance section of this chapter.) A Java-land button doesn't know or care how the real-world button is implemented or what additional capabilities it may have; it knows only about the existence of the methods defined in the ButtonPeer interface. Figure 13.4 shows a call to the setLabel() method of a Button object, which results in a call to the corresponding setLabel() method of the native button object.

Figure 13.4: Invoking a method in the peer interface

In this case, the only action a button peer must be able to perform is to set its label text; setLabel() is the only method in the ButtonPeer interface. How the native button acts, responds to user input, etc., is entirely up to it. It might turn green when pressed or make a "ka-chunk" sound. The component in Java-land has no control over these aspects of the native button's behavior--and this has important implications. This abstraction allows AWT to use native components from whatever platform it resides on. However, it also means that a lot of a component's functionality is locked away where we can't get to it. We'll see that we can usually intercept events before the peer object has a chance to act on them, but we usually can't change much of the object's basic behavior.

A component gets its peer when it's added to a container. Containers are associated with display devices through Toolkit objects, and thus control the process of peer creation. We'll talk more about the ramifications of this when we discuss addNotify() later.

13.1.2 The Model/View/Controller Framework

Before we continue our discussion of GUI concepts, I want to make a brief aside and talk about the Model/View/Controller (MVC) framework. MVC is a method of building reusable components that logically separates the structure, representation, and behavior of a component into separate pieces. MVC is primarily concerned with building user interface components, but the basic ideas can be applied to many design issues; its principles can be seen throughout Java. Java doesn't implement all of MVC, whose origins are in Smalltalk, but MVC's influence is apparent throughout the language.

The fundamental idea behind MVC is the separation of the data model for an item from its presentation. For example, we can draw different representations (e.g., bar graphs, pie charts) of the data in a spreadsheet. The data is the "model"; the particular representation is the "view." A single model can have many views that show different representations of the data. The behavior of a user interface component usually changes its model and affects how the component is rendered as a view. If we were to create a button component, for example, its data model could be as simple as a boolean value for whether it's up or down. The behavior for handling mouse-press events would alter the model, and the display would examine that data when it draws the on-screen representation.

The way in which AWT objects communicate, by passing events from sources to listeners, is part of this MVC concept of separation. Event listeners are "observers," and event sources are "observables." When an observable changes or performs a function, it notifies all of its observers of the activity. In Chapter 9 we described the Observer class and Observable interface of the java.util package. AWT doesn't use these classes directly, but it does use exactly the same design pattern for handling event sources and listeners.

This model of operation is also central to the way in which Java works with graphics, as you'll see in Chapter 17. Image information from a producer, such as a graphics engine or video stream, is distributed to consumers that can represent different views of the data. Consumers register with a producer and receive updates as the image is created or when the image has changed.

The factory concept used by the Toolkit objects is related to MVC; factories use Java interfaces to separate the implementation of an object from its behavior. An object that implements an interface doesn't have to fit into a particular class structure; it needs only to provide the methods defined by the interface. Thus, an AWT Toolkit is a factory that produces native user interface components that correspond to Java components. The native components don't need to match AWT's class structure, provided they implement the appropriate interface.

13.1.3 Painting and Updating

Components can be asked to draw themselves at any time. In a more procedural programming environment, you might expect a component to be involved in drawing only when first created or when it changes its appearance. In Java, components act in a way that is more closely tied to the underlying behavior of the display environment. For example, when you obscure a component with a window and then re-expose it, an AWT thread asks the component to redraw itself.

AWT asks a component to draw itself by calling its paint() method. paint() may be called at any time, but in practice, it's called when the object is first made visible, whenever it changes its appearance, and whenever some tragedy in the display system messes up its area. Because paint() can't make any assumptions about why it was called, it must redraw the component's entire display.

However, redrawing the whole component is unnecessary if only a small part changes, especially in an anticipated way. In this case, you'd like to specify what part of the component has changed, and redraw that part alone. Painting a large portion of the screen is time consuming and can cause flickering that is especially annoying if you're redrawing the object frequently, as is the case with animation. When a component realizes it needs to redraw itself, it should ask AWT to schedule a call to its update() method. update() can do drawing of its own, but it often simply defines a clipping region--by calling clipRect()--on its graphics context; to limit the extent of the painted area and then calls paint() explicitly. A simple component doesn't have to implement its own update() method, but that doesn't mean the method doesn't exist. In this case, the component gets a default version of update() that simply clears the component's area and calls paint().

A component never calls its update() method directly. Instead, when a component requires redrawing, it schedules a call to update() by invoking repaint(). The repaint() method asks AWT to schedule the component for repainting. At some point in the future, a call to update() occurs. AWT is allowed to manage these requests in whatever way is most efficient. If there are too many requests to handle, or if there are multiple requests for the same component, AWT can reschedule a number of repaint requests into a single call to update(). This means that you can't predict exactly when update() will be called in response to a repaint(); all you can expect is that it happens at least once, after you request it.

Calling repaint() is normally an implicit request to be updated as soon as possible. Another form of repaint() allows you to specify a time period within which you would like an update, giving the system more flexibility in scheduling the request. An application can use this method to govern its refresh rate. For example, the rate at which you render frames for an animation might vary, depending on other factors (like the complexity of the image). You could impose an effective maximum frame rate by calling repaint() with a time (the inverse of the frame rate) as an argument. If you then happen to make more than one repaint request within that time period, AWT is not obliged to physically repaint for each one. It can simply condense them to carry out a single update within the time you have specified.

Both paint() and update() take a single argument: a Graphics object. The Graphics object represents the component's graphics context. It corresponds to the area of the screen on which the component can draw and provides the methods for performing primitive drawing and image manipulation. We'll look at the Graphics class in detail in Chapter 16.

All components paint and update themselves using this mechanism. However, you really care about it only when doing your own drawing, and in practice, you should be drawing only on a Canvas, Panel, Applet, or your own subclasses of Component. Other kinds of objects, like buttons and scrollbars, have lots of behavior built into their peers. You may be able to draw on one of these objects, but unless you specifically catch the appropriate events and redraw (which could get complicated), your handiwork is likely to disappear.

Canvases, Panels, and lightweight components are "blank slates" on which to implement your own behavior and appearance. For example, by itself, the AWT Canvas has no outward appearance; it takes up space and has a background color, but otherwise, it's empty. By subclassing Canvas and adding your own code, you can create a more complicated object like a graph or a flying toaster. A lightweight component is even "emptier" than that. It doesn't have a real Toolkit peer for its implementation; you get to specify all of the behavior and appearance yourself.

A Panel is like a Canvas, but it's also a Container, so it can hold other user interface components. In the same way, a lightweight container is a simple extension of the AWT Container class.

13.1.4 Enabling and Disabling Components

Standard AWT components can be turned on and off by calling the enable() and disable() methods. When a component like a Button or TextField is disabled, it becomes "ghosted" or "greyed-out" and doesn't respond to user input.

For example, let's see how to create a component that can be used only once. This requires getting ahead of the story; I won't explain some aspects of this example until later. Earlier, I said that a Button generates an ActionEvent when it is pressed. This event is delivered to the listeners' actionPerformed() method. The code below disables whatever component generated the event:

public boolean void actionPerformed(ActionEvent e ) {
	...
    ((Component)e.getSource()).disable();
}

This code calls getSource() to find out which component generated the event. We cast the result to Component because we don't necessarily know what kind of component we're dealing with; it might not be a button, because other kinds of components can generate action events. Once we know which component generated the event, we disable it.

You can also disable an entire container. Disabling a Panel, for instance, disables all the components it contains. Unfortunately, disabling components and containers is handled by the AWT toolkit at a low level. It is currently not possible to notify custom (pure Java) components when their native containers are disabled. This flaw should be corrected in a future release.

13.1.5 Focus, Please

In order to receive keyboard events, a component has to have keyboard focus. The component with the focus is simply the currently selected input component. It receives all keyboard event information until the focus changes. A component can ask for focus with the Component's requestFocus() method. Text components like TextField and TextArea do this automatically whenever you click the mouse in their area. A component can find out when it gains or loses focus through the FocusListener interface (see Tables 13-1 and 13-2 later in this chapter). If you want to create your own text-oriented component, you could implement this behavior yourself. For instance, you might request focus when the mouse is clicked in your component's area. After receiving focus, you could change the cursor or do something else to highlight the component.

Many user interfaces are designed so that the focus automatically jumps to the "next available" component when the user presses the Tab key. This behavior is particularly common in forms; users often expect to be able to tab to the next text entry field. AWT handles automatic focus traversal for you when it is applicable. You can get control over the behavior through the transferFocus() and isFocusTraversable() methods of Component. transferFocus() passes the focus to the next appropriate component. You can use transferFocus() to control the order of tabbing between components by overriding it in the container and implementing your own policy. isFocusTraversable() returns a boolean value specifying whether the component should be considered eligible for receiving a transfer focus. Your components can override this method to determine whether they can be "tabbed to."

13.1.6 Other Component Methods

The Component class is very large; it has to provide the base level functionality for all of the various kinds of Java GUI objects. We don't have room to document every method of the component class here, but we'll flesh out our discussion by covering some more of the important ones:

Container getParent()

Return the container that holds this component.

String getName() / void setName(String name)

Get or assign the String name of this component. Naming a component is useful for debugging. The name shows up when you do a toString().

setVisible(boolean visible)

Make the component visible or invisible, within its container. If you change the component's visibility, remember to call validate() on the container; this causes the layout manager to lay out the container again.

Color getForeground() / void setForeground(Color c)

Color getBackground() / void setBackground(Color c)

Get and set the foreground and background colors for this component. The foreground color of any component is the default color used for drawing. For example, it is the color used for text in a text field; it is also the default drawing color for the Graphics object passed to the component's paint() method. The background color is used to fill the component's area when it is cleared by the default implementation of update().

Font getFont() / void setFont(Font f)

Get or set the Font for this component. (Fonts are discussed in Chapter 16.) You can set the Font on text components like TextField and TextArea. For Canvases, Panels, and lightweight components, this will also be the default font used for drawing text on the Graphics context passed to paint().

FontMetrics getFontMetrics(Font font)

Find out the characteristics of a font when rendered on this component. FontMetrics allow you to find out the dimensions of text when rendered in that font.

Dimension getSize() / void setSize(int width, int height)

Get and set the current size of the component. Remember to call validate() on the component's container if you change its size. There are other methods in Component to set its location, but normally this is the job of a layout manager.

Cursor getCursor() / void setCursor(Cursor cursor)

Get or set the type of cursor (mouse pointer) used when the mouse is over this component's area. For example:

Component myComponent = ...;
Cursor crossHairs = Cursor.getPredefinedCursor( Cursor.CROSSHAIR_CURSOR );
myComponent.setCursor( crossHairs );
