13.6.1 Adapter Classes

It's not usually ideal to have your application components implement a listener interface and receive events directly. Sometimes it's not even possible. Being an event receiver forces you to modify or subclass your objects to implement the appropriate event listener interfaces and add the code necessary to handle the events. Since we are talking about AWT events here, a more subtle issue is that you are, of necessity, building GUI logic into parts of your application that shouldn't have to know anything about the GUI. Let's look at an example.

In Figure 13.11 we have drawn the plans for our Vegomatic food processor. Here we have made our Vegomatic object implement the ActionListener interface so that it can receive events directly from the three Button components: Chop, Puree, and Frappe. The problem is that our Vegomatic object now has to know more than how to mangle food. It also has to be aware that it will be driven by three controls--specifically, buttons that send action commands--and be aware of which methods in itself it should invoke for those commands. Our boxes labeling the GUI and application code overlap in an unwholesome way. If the marketing people should later want to add or remove buttons or perhaps just change the names, we have to be careful. We may have to modify the logic in our Vegomatic object. All is not well.

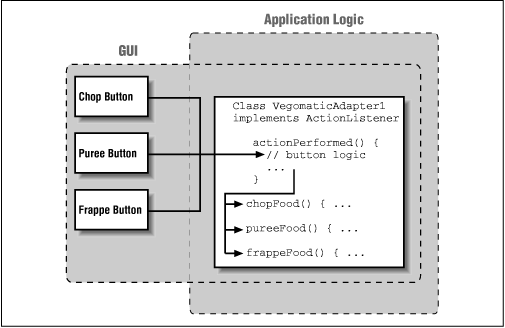

Figure 13.11: Implementing the ActionListener interface directly

An alternative is to place an adapter class between our event source and receiver. An adapter is a simple object whose sole purpose is to map an incoming event to an outgoing method.

Figure 13.12 shows a better design that uses three adapter classes, one for each button. The implementation of the first adapter might look like:

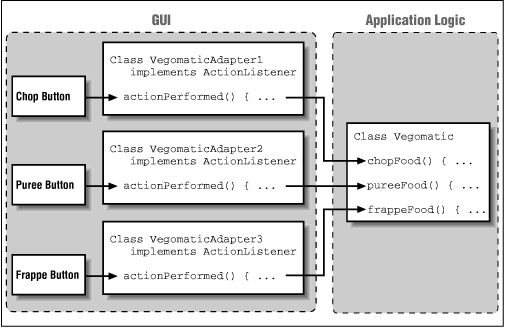

Figure 13.12: A design using adapter classes

class VegomaticAdapter1 implements actionListener {
    Vegotmatic vegomatic;
    VegomaticAdapter1 ( Vegotmatic vegomatic ) {
        this.vegomatic = vegomatic;
    }
    public void actionPerformed( ActionEvent e ) {
        vegomatic.chopFood();
    }
}

So somewhere in the code where we build our GUI, we could register our listener like so:

// building GUI for our Vegomatic
Vegomatic theVegomatic = ...;
Button chopButton = ...;
// make the hookup
chopButton.addActionListener( new VegomaticAdapter1(theVegomatic) );

We have completely separated the messiness of our GUI from the application code. However, we have added three new classes to our application, none of which does very much. Is that good? That depends on your vantage point.

Under different circumstances, our buttons may have been able to share a common adapter class that was simply instantiated with different parameters. Various trade-offs can be made between size, efficiency, and elegance of code. Adapter classes will often be generated automatically by development tools. The way we have named our adapter classes VegomaticAdapter1, VegomaticAdapter2, and VegomaticAdapter3 hints at this. More often, when hand coding, you'll use an inner class. At the other extreme, we can forsake Java's strong typing and use the reflection API to create a completely dynamic hookup between an event source and listener.

public void mouseClicked(MouseEvent e) {};
public void mousePressed(MouseEvent e) {};
public void mouseReleased(MouseEvent e) {};
public void mouseEntered(MouseEvent e) {};
public void mouseExited(MouseEvent e) {};

someComponent.addMouseListener( new MouseAdapter() {
    public void MousePressed(MouseEvent e) {
        building.blowUp();
    }
} );

13.6.2 Old Style and New Style Event Processing

Although Java is still a youngster, it has a bit of a legacy. Versions of Java before 1.1 used a different style of event delivery. Back in the old days (a few months ago), event types were limited, and an event was delivered only to the Component that generated it or one of its parent containers. The old style component event-handler methods (now deprecated) returned a boolean value declaring whether or not they had handled the event:

boolean handleEvent( Event e ) {
    ...
}

If the method returns false, the event is automatically redelivered to the component's container to give it a chance. If the container does not handle it, it is passed on to its parent container, and so on. In this way, events were propagated up the containment hierarchy until they were either consumed or passed over to the component peer, just as current InputEvents are ultimately interpreted using the peer if no registered event listeners have consumed them.

Although this style of event delivery was convenient for some simple applications, it is not very flexible. Events could be handled only by components, which meant that you always had to subclass a Component or Container type to handle events. This was a degenerate use of inheritance (i.e., bad design) that led to the creation of lots of unnecessary classes.

We could, alternatively, receive the events for many embedded components in a single parent container, but that would often lead to very convoluted logic in the container's event-handling methods. It is also very costly to run every single AWT event through a gauntlet of (often empty) tests as it traverses its way up the tree of containers. This is why Java now provides the more dynamic and general event source/listener model that we have described in this chapter. The old style events and event-handler methods are, however, still with us.

Java is not allowed to simply change and break an established API. Instead, older ways of doing things are simply deprecated in favor of the new ones. This means that code using the old style event handler methods will still work; you may see old style code around for a long time. The problem with relying on old style event delivery, however, is that the old and new ways of doing things cannot be mixed.

By default, Java is obligated to perform the old behavior--offering events to the component and each of its parent containers. However, Java turns off the old style delivery whenever it thinks that we have elected to use the new style. Java determines whether a Component should receive old style or new style events based on whether any event listeners are registered, or whether new style events have been explicitly enabled. When an AWT event listener is registered with a Component, new style events are implicitly turned on (a flag is set). Additionally, a mask is set telling the component the types of AWT events it should process. The mask allows components to be more selective about which events they process.

    public void init() {
        ...
        enableEvent( AWTEvent.KEY_EVENT_MASK ):
    }
    public void processKeyEvent(KeyEvent e) {
        if ( e.getID() == KeyEvent.KEY_TYPED )
            // do work
        super.processKeyEvent(e);
    }

class MyApplet implements KeyListener ...
    public void init() {
        addKeyListener( this ):
        ...
    }
    public void keyTyped(KeyEvent e) {
        // do work
    }
