13.2.1 Layout Managers

A layout manager is an object that controls the placement and sizing of components within the display area of a container. A layout manager is like a window manager in a display system; it controls where the components go and how big they are. Every container has a default layout manager, but you can easily install a new one by calling the container's setLayout() method.

AWT comes with a few layout managers that implement common layout schemes. The default layout manager for a Panel is a FlowLayout, which tries to place objects at their preferred size from left to right and top to bottom in the container. The default for a Frame is a BorderLayout, which places a limited number of objects at named locations like "North," "South," and "Center." Another layout manager, the GridLayout, arranges components in a rectangular grid. The most general (and difficult to use) layout manager is GridBagLayout, which lets you do the kinds of things you can do with HTML tables. We'll get into the details of all of these layout managers in Chapter 15.

As I mentioned earlier, you normally call add() to add a component to a container. There is an overloaded version of add() that you may need, depending on what layout manager you're using. You'll often use the version of add() that takes a single Component as an argument. However, if you're using a layout manager that uses "constraints," like BorderLayout or GridBagLayout, you need to specify additional information about where to put the new component. For that you can use the version that takes a constraint object:

add( Component component, Object constraint);

For example, to add a component to the top of a BorderLayout, you might say:

add( newComponent, "North");

In this case, the constraint object is the string "North." The GridBagLayout uses a much more complex constraint object to specify positioning.

13.2.2 Insets

Insets specify a container's margins; the space specified by the container's insets won't be used by a layout manager. Insets are described by an Insets object, which has four int fields: top, bottom, left, and right. You normally don't need to worry about the insets; the container will set them automatically, taking into account extras like the menu bar that may appear at the top of a frame. However, you should modify the insets if you're doing something like adding a decorative border (for example, a set of "index tabs" at the top of a container) that reduces the space available for components. To change the insets, you override the component's getInsets() method, which returns an Insets object. For example:

//reserve 50 pixels at the top, 5 at the sides and 10 at the bottom
public Insets getInsets() {
    return new Insets (50,5,10,5);
}

13.2.3 Z-Ordering (Stacking Components)

In most layout schemes, components are not allowed to overlap, but they can. If they do, the order in which components were added to a container matters. When components overlap they are "stacked" in the order in which they were added: the first component added to the container is on top; the last is on the bottom. To give you more control over stacking, two additional forms of the add() method take an additional integer argument that lets you specify the component's exact position in the container's stacking order.

13.2.4 validate() and layout()

A layout manager arranges the components in a container only when asked to. Several things can mess up a container after it's initially laid out:

• Changing its size

• Resizing or moving one of its child components

• Adding, showing, removing, or hiding a child component

So if you have an applet that contains a small Panel--say a keypad holding some buttons--and you change the size of the Panel by calling its resize() method, you should also call validate() on the applet. The applet's layout manager may then reposition or resize the keypad within the applet. It also automatically calls validate() for the keypad, so that it can rearrange its buttons to fit inside its new area.

There are two things you should note. First, all components, not just containers, maintain a notion of when they are valid or invalid. But most components (e.g., buttons) don't do anything special when they're validated. If you have a custom component that wants to be notified when it is resized, it might be best to make it a container (perhaps a lightweight container) and do your work in the doLayout() method.

Next, child containers are validated only if they are invalid. That means that if you have an invalid component nested inside a valid component and you validate a container above them both, the invalid component may never be reached. However, the invalidate() method that marks a container as dirty automatically marks parent containers as well, all the way up the container hierarchy. So that situation should never happen.

13.2.5 Component Peers and addNotify()

A component gets its peer when it's added to a container. Containers are associated with display devices through Toolkit objects, and thus control the process of peer creation. This means that you can't ask certain questions about a component before it's placed in a container. For example, you can't find out about a component's size or its default font until the component knows where it's being displayed (until it has its peer).

You probably also shouldn't be able to ask a component with no peer about other resources controlled by the peer, such as off-screen graphics areas and font metrics. Java's developers apparently thought this restriction too onerous, so container-less components are associated with the "default" toolkit that can answer some of these kinds of inquiries. In practice, the default toolkit is usually able to provide the right answer, because with current implementations of Java, the default toolkit is probably the only toolkit available. This approach may cause problems in the future, if Java's developers add the ability for different containers to have different toolkits.

The same issue (the existence of a component's peer) also comes up when you are making your own kinds of components and need access to some of these peer resources before you can complete the setup. For example, suppose that you want to set the size or some other feature of your component based on the default font used. You can't complete this setup in your constructor because the peer doesn't exist yet. The solution to all of these problems is proper use of the addNotify() method. As its name implies, addNotify() can be used to get notification when the peer is created. You can override it to do your own work, as long as you remember to call super.addNotify() to complete the peer creation. For example:

class FancyLabel  {
    FancyLabel() {
        // No peer yet...
    }
    public void addNotify() {
        super.addNotify();  // complete the peer creation
        // Complete setup based on Fonts
        // and other peer resources.
    }
}

13.2.6 Managing Components

There are a few additional tools of the Container class that we should mention:

Component[] getComponents()

Returns the container's components in an array.

void list(PrintWriter out, int indent)

Generates a list of the components in this container and writes them to the specified PrintWriter.

Component getComponentAt(int x, int y)

Tells you what component is at the specified coordinates in the container's coordinate system.

13.2.7 Listening for Components

Finally, an important tool to be aware of is the ContainerListener interface. It lets you receive an event whenever a component is added to or removed from a container. (It lets you hear the tiny cries of the component as it is imprisoned in its container or torn away.) You can use the ContainerListener interface to automate the process of setting up components when they are added to your container. For instance, your container might need to register other kinds of event listeners with its components to track the mouse or handle certain kinds of actions.

13.2.8 Windows and Frames

Windows and frames are the top-level containers for Java components. A Window is simply a plain, graphical screen that displays in your windowing system. Windows have no frills; they are mainly suitable for making "splash" screens and dialogs--things that limit the user's control. Frame, on the other hand, is a subclass of Window that has a border and can hold a menu bar. Frames are under the control of your window manager, so you can drag a frame around on the screen and resize it, using the ordinary controls for your environment. Figure 13.5 shows a Frame on the left and a Window on the right.

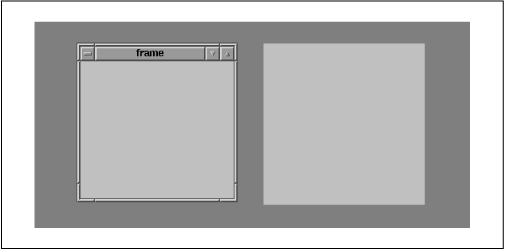

Figure 13.5: A typical frame and window

All other components and containers in Java must be held, at some level, inside of a Window or Frame. Applets, as we've mentioned a few times, are a kind of Panel. Even applets must be housed in a Java frame or window, though normally you don't see an applet's parent frame because it is part of (or simply is) the browser or appletviewer displaying the applet.

A Frame is the only Component that can be displayed without being added or attached to another Container. After creating a Frame, you can call the show() method to display it. Let's create a standalone equivalent (see Figure 13.6) of our HelloWeb applet from Chapter 2.

Figure 13.6: Standalone equivalent of the HelloWeb applet

class HelloWebApp {
    public static void main( String [] args ) {
        Frame myFrame = new Frame("The Title");
        myFrame.add("Center", new Label("Hello Web!", Label.CENTER) );
        myFrame.pack();

        myFrame.show();
    }
}

Here we've got our minimal, graphical, standalone Java application. The Frame constructor can take a String argument that supplies a title, displayed in the Frame's title bar. (Another approach would be to create the Frame with no title and call setTitle() to supply the title later.) After creating the Frame, we add our Label to it and then call pack(), which prepares the Frame for display. pack() does a couple of things, but its most important effect in this case is that it sets the size of the Frame to the smallest size required to hold all of its components. Specifically, pack() calls:

setSize( preferredSize() );

Next, we call show() to get the Frame onto the screen. The show() method returns immediately, without blocking. Fortunately, our application does not exit while the Frame is showing. To get rid of a Frame, call the dispose() method. If you want to hide the Frame temporarily, call setVisible(false). You can check to see if a Frame is showing with the isShowing() method.

In this example, we let pack() set the size of the Frame for us before we show() it. If we hadn't, the Frame would have come up at an undefined size. If we instead want the Frame to be a specific size (not just hugging its child components) we could simply call setSize() instead of pack().

...
myFrame.setSize( 300, 300 );
myFrame.show();

13.2.9 Other Methods for Controlling Frames

The setLocation() method of the Component class can be used on a Frame or Window to set its position on the screen. The x and y coordinates are considered relative to the screen's origin (the top left corner).

You can use the toFront() and toBack() methods, respectively, to pull a Frame or Window to the front of other windows or push it to the background. By default, a user is allowed to resize a Frame, but you can prevent resizing by calling setResizable(false) before showing the Frame.

On most systems, frames can be "iconified"; that is, they can be represented by a little icon image. You can get and set a frame's icon image by calling getIconImage() and setIconImage(). As you can with all components, you set the cursor by calling the setCursor() method.

13.2.10 Using Windows

Windows and frames have a slightly convoluted relationship. We said earlier that Frame is a subclass of Window. However, if you look, you'll see that to create a Window you have to have a Frame available to serve as its parent. The Window constructor takes a Frame as an argument:

Window myWindow = new Window( myFrame );

The rationale for this limitation is long and boring. Suffice it to say that it will probably go away in the future.

13.2.11 Prepacking Windows and Frames

Earlier we said that calling pack() on a Frame sets the frame's size to the preferred size of its layout. However, the pack() method is not simply equivalent to a call to setSize(). pack() is often called before any of the frame's components have their peers. Therefore, calling pack() forces the container to choose its Toolkit and to create the peers of any components that have been added to it. After that is done, the layout manager can reliably determine its preferred size.

For a large frame with lots of components, packing the frame is a convenient way to do this setup work in advance, before the frame is displayed. Whether this is useful depends on whether you'd rather have your application start up faster or pop up its frames faster once it is running.
