8.1.1 The Thread Class and the Runnable Interface

A new thread is born when we create an instance of the java.lang.Thread class. The Thread object represents a real thread in the Java interpreter and serves as a handle for controlling and synchronizing its execution. With it, we can start the thread, stop the thread, or suspend it temporarily. The constructor for the Thread class accepts information about where the thread should begin its execution. Conceptually, we would like to simply tell it what method to run, but since there are no pointers to methods in Java, we can't specify one directly. Instead, we have to take a short detour and use the Runnable interface to create an object that contains a "runnable" method.

An object that wants to serve as the target of a Thread can declare that it has an appropriate executable method by implementing the java.lang.Runnable interface. Runnable defines a single, general-purpose method:

public interface Runnable {
  abstract public void run();
}

Every thread begins its life by executing a run() method in a particular object. run() is a rather mundane method that can hold an arbitrary body of code. It is public, takes no arguments, has no return value, and is not allowed to throw any exceptions.

Any class that contains an appropriate run() method can declare that it implements the Runnable interface. An instance of this class is then a runnable object that can serve as the target of a new Thread. If you don't want to put the run() method directly in your object, you can always make an adapter class that serves as the Runnable for you. The adapter's run() method can call any method it wants to start the thread.

Creating and starting threads

A newly born Thread remains idle until we give it a figurative slap on the bottom by calling its start() method. The thread then wakes up and proceeds to execute the run() method of its target object. start() can be called only once in the lifetime of a Thread. Once a thread starts, it continues running until the target object's run() method completes, or we call the thread's stop() method to kill the thread permanently. A little later, we will look at some other methods you can use to control the thread's progress while it is running.

Now let's look at an example. The following class, Animation, implements a run() method to drive its drawing loop:

class Animation implements Runnable {
   ...
   public void run() {

       while ( true ) {
           // Draw Frames
           ...
       }
   }
}

To use it, we create a Thread object with an instance of Animation as its target object, and invoke its start() method. We can perform these steps explicitly, as in the following:

Animation happy = new Animation("Mr. Happy");
Thread myThread = new Thread( happy );
myThread.start();
...

Here we have created an instance of our Animation class and passed it as the argument to the constructor for myThread. When we call the start() method, myThread begins to execute Animation's run() method. Let the show begin!

The above situation is not terribly object oriented. More often, we want an object to handle its own threads, as shown in Figure 8.1, which depicts a Runnable object that creates and starts its own Thread. We'll show our Animation class performing these actions in its constructor:

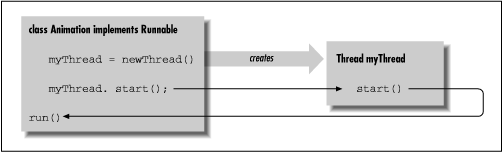

Figure 8.1: Interaction between Animation and its thread

class Animation implements Runnable {

    Thread myThread;

    Animation (String name) {
        myThread = new Thread( this );
        myThread.start();
    }
    ...

In this case, the argument we pass to the Thread constructor is this, the current object instance. We keep the Thread reference in the instance variable myThread, in case we want to stop the show, or exercise some other kind of control.

A natural born thread

The Runnable interface lets us make an arbitrary object the target of a thread, as we did above. This is the most important, general usage of the Thread class. In most situations where you need to use threads, you'll create a class that implements the Runnable interface. I'd be remiss, however, if I didn't show you the other technique for creating a thread. Another design option is to make our target class a subclass of a type that is already runnable. The Thread class itself implements the Runnable interface; it has its own run() method we can override to make it do something useful:

class Animation extends Thread {
    ...

    public void run() {
        while (true ) {
            // Draw Frames
            ...
        }
    }
}

The skeleton of our Animation class above looks much the same as before, except that our class is now a kind of Thread. To go along with this scheme, the default constructor of the Thread class makes itself the default target. That is, by default, the Thread executes its own run() method when we call the start() method, as shown in Figure 8.2. Now our subclass can just override the run() method in the Thread class (Thread simply defines an empty run() method).

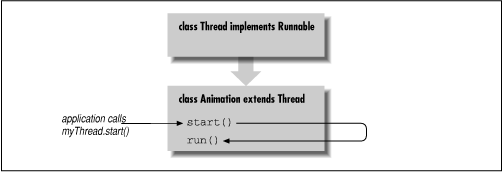

Figure 8.2: Animation as a subclass of Thread

Now we create an instance of Animation and call its start() method:

Animation bouncy = new Animation("Bouncy");
bouncy.start();

Alternatively, we can have the Animation object start itself when it is created, as before:

class Animation extends Thread {

    Animation (String name) {
        start();
    }
    ...

Here our Animation object just calls its own start() method when an instance is created. (It's better form to start and stop our objects explicitly after they're created.)

Subclassing Thread seems like a convenient way to bundle a Thread and its target run() method. However, this approach often isn't the best design. If you subclass Thread to implement a thread, you are saying you need a new type of object that is a kind of Thread. While there is something unnaturally satisfying about taking an object that's primarily concerned with performing a task and making it a type of Thread, the actual situations where you'll want to create a subclass of Thread should be rather rare. In most cases, it will be more natural to let the requirements of your program dictate the class structure. If you find you're subclassing Thread left and right, you may want to examine whether you are falling into the design trap of making objects that are simply glorified functions.

class Animation {

    public void startAnimating() {
        // Do setup, load images, etc.
        ...

        // Start a drawing thread
        myThread = new Thread ( new Runnable() {
            public void run() { drawFrames(); }
        } );
        myThread.start();
    }

    private void drawFrames() {
        // do animation ...
    }
}

8.1.2 Controlling Threads

We have seen the start() method used to bring a newly created Thread to life. Five other methods, listed below, let us control a Thread's execution: stop(), suspend(), resume(), sleep() and interrupt(). None of these methods take any arguments; they all operate on the thread object on which they are called.

• The stop() method complements start(); it destroys the thread. start() and stop() can be called only once in the life of a Thread.

• By contrast, the suspend() and resume() methods can be used to arbitrarily pause and then restart the execution of a Thread.

• The sleep() method causes a thread to wait for a designated period of time.

• The interrupt() method can be used to wake up a thread that is sleeping or is otherwise blocked on a long I/O operation.[1]

  [1] interrupt() does not work in versions of Java prior to 1.1.

For simple tasks, it is often easy enough to throw away a thread when we want to stop it and simply create a new one when want to proceed again. suspend() and resume() can be used in situations where the Thread's setup is very expensive. For example, if creating the thread involves opening a socket and setting up some elaborate communication, it probably makes more sense to use suspend() and resume() with this thread.

We often need to tell a thread to wait, or "sleep," for a fixed period of time. While a thread is asleep, or otherwise blocked on input of some kind, it doesn't consume CPU time or compete with other threads for processing. For this we can either call the thread's sleep() method or use a convenience method of the Thread class. Thread.sleep() is a static method that causes the currently executing thread to delay for a specified number of milliseconds:

try {
    Thread.sleep( 1000 );
    // Thread.currentThread().sleep( 1000 );
}
catch ( InterruptedException e ) {
    // Someone woke us up prematurely
}

The call to Thread.sleep() is equivalent to the "commented out" call below it that calls sleep() explicitly on the currently executing thread. In any form, sleep() throws an InterruptedException if it is interrupted by another Thread. To interrupt a thread, call its interrupt() method. As you see in the code above, the thread can catch this exception and take the opportunity to perform some action, or perhaps just go back to sleep.

Finally, if you need to coordinate your activities with another thread by waiting for the other thread to complete its task, you can use the join() method. Calling a thread's join() method causes the caller to block until the thread dies. Alternatively, you can poll the thread by calling join() with a number of milliseconds to wait. Later we'll look at a much more general and powerful mechanism for coordinating the activities of threads: wait() and notify().

8.1.3 A Thread's Life

A Thread continues to execute until one of the following things happens:

• It returns from its target run() method

• It's interrupted by an uncaught exception

• Its stop() method is called

So what happens if the run() method for a thread never terminates, and the application that started the thread never calls its stop() method? The answer is that the thread lives on, even after the application that created it has finished. This means we have to be aware of how our threads eventually terminate, or an application can end up leaving orphaned threads that unnecessarily consume resources.

In many cases, we really want to create background threads that do simple, periodic tasks in an application. The setDaemon() method can be used to mark a Thread as a daemon thread that should be killed and discarded when no other application threads remain. Normally, the Java interpreter continues to run until all threads have completed. But when daemon threads are the only threads still alive, the interpreter will exit.

Here's a devilish example using daemon threads:

class Devil extends Thread {

    Devil() {
        setDaemon( true );
        start();
    }

    public void run() {
        // Perform evil tasks
        ...
    }
}

In the above example, the Devil thread sets its daemon status when it is created. If any Devil threads remain when our application is otherwise complete, Java kills them for us. We don't have to worry about cleaning them up.

Daemon threads are primarily useful in standalone Java applications and in the implementation of the Java system itself, but not in applets. Since an applet runs inside of another Java application, any daemon threads it creates could continue to live until the controlling application exits--probably not the desired effect. A browser or an application can use ThreadGroups to control all of the threads created by an application and clean them up if necessary.
